Markush claims under Australian patent practice

by FPA Patent Attorneys
Contact

Markush claims are a common form of claim in the field of chemistry. Markush claims essentially claim a core molecular structure and cover a wide range of substituent groups that can be substituted on to that molecular structure. In this way, a Markush claim may potentially cover thousands if not millions of variations of molecules having that core molecular structure.

An assessment of the novelty of these claims under Australian law can be difficult, particularly in the case where there is overlap between a prior art Markush disclosure and a Markush claim.

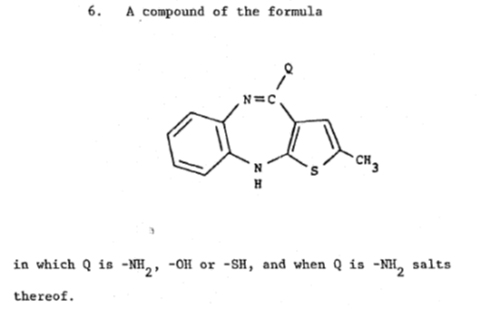

An example of a Markush claim is shown below, from Australian patent 643267 directed to Olanzapine (which was the subject of a recent infringement/revocation case ):

In this case there is only one Markush group – “Q” – which can be one of three substituents. In other cases, there may be numerous Markush groups which could potentially be selected from a multitude of substituents.

In the above case, Apotex argued that the patent was invalid due to lack of novelty in light of the disclosure of earlier patents by Eli Lily which contained generic disclosures of the above molecule. Ultimately, the claims were found to be novel as the prior art did not provide clear and unmistakeable directions that would lead the skilled addressee to the invention.

Standard tests for novelty

In assessing the novelty of a claim, the standard approach is to apply the reverse infringement test, i.e. if the disclosure of a prior art citation would fall within the scope of a claim, then that claim lacks novelty. However, this is not the only test for novelty and in cases such as the above, the Courts have applied different tests in deciding whether broad generic claims anticipate a narrower claim.

In addition to the reverse infringement test, for the disclosure of the citation to be relevant for the purpose of novelty, the disclosure must also be one that:

  • provides clear and unmistakable directions that would lead the skilled addressee to the claimed invention, and
  • provides an enabling disclosure that would allow the skilled addressee, in the case of a disclosure of a chemical compound, to make that compound.

Given the above, there is a real question as to whether a prior art document that includes a Markush structure that overlaps with a claimed Markush structure but does not explicitly disclose a molecule that falls within the scope of that claim is an anticipation of the claim.

A Markush structure may be considered a disclosure of every individual molecule that falls within the scope of the Markush structure. In this case, when applying the reverse infringement test the subsequently claimed molecule will be found to be anticipated. However, as discussed above there are additional tests for novelty. In the context of enabling disclosures in particular, Crennan J stated that: “Not every disclosure is a disclosure for novelty purposes”1 Thus, the claim may still be considered novel if the prior art document does not provide clear and unmistakable directions and/or an enabling disclosure. An enabling disclosure is one which is sufficient to enable the skilled addressee to make the compound without the necessity of making further experiments2.

The Australian Patent Office applies varying approaches, but appears to consider that a Markush formula is a generic disclosure and that generic disclosures do not provide clear and unmistakable directions or an enabling disclosure unless that document also includes an example falling within the claimed range3. The Australian Patent Office generally does not seem to consider the overlap between a prior art Markush structure and a claimed Markush structure in assessing novelty.

Similarly, the Australian Patent Office considers that an enabling disclosure must be sufficient to allow the skilled addressee to make the compound4. Even if a compound falls within the scope of a prior art Markush disclosure, if that compound is not exemplified, then there are grounds to argue that the prior art does not provide an enabling disclosure.

Although the Australian Patent Office is willing to accept broad Markush claims (that are not prior disclosed by an exemplified compound), the more important question is whether these claims would be considered valid by the Courts. Just because there is no explicit prior art disclosure of a molecule does not mean that the disclosure does not provide clear and unmistakable directions or an enabling disclosure for a molecule that falls within the scope of the claims.

Fundamentally, whether a prior art disclosure provides clear and unmistakable directions or an enabling disclosure is a question for the skilled addressee. If the skilled addressee understands that the disclosure is broader than the exemplified molecules, and considers such disclosure to provide the requisite clear and unmistakable directions and an enabling disclosure then the claim will lack novelty.

Does the Markush claim define a selection over the prior art?

Another avenue that can be pursued is to argue that the claimed Markush structure defines a selection over the prior art. Briefly, in order to define a selection:

  • the selection must be based on some substantial advantage gained or some substantial disadvantage avoided;
  • the whole of the selected members must possess the advantage in question; and
  • the selection must be in respect of a quality of a special character which may fairly be said to be peculiar to the selected group6.

Selection patents are an unsettled area of Australian patent law. The Australian Patent Office will generally accept claims if it can be demonstrated that those claims meet the above selection criteria. However, the Courts have not come to a definitive view regarding whether “selection patents” are a feature of Australian law. Selection patents were referred to by Gyles J as “a somewhat controversial topic”7, similarly Middleton J stated that: “Patents for selection inventions (if such patents form part of Australian law) are based on the discovery of desirable properties arising from the use of a specific material that has been broadly encompassed by a prior disclosure of a family of related materials”8 (emphasis added).

In a number of cases, which dealt with the issue of selection criteria, the general approach taken by the Courts was to first assess the novelty of the claims using the standard tests discussed above, and then to informally consider whether the claims would define a valid selection9,10,11. In each case, the informal consideration of whether the claims defined a selection reached the same conclusion as the standard approach to assessing the novelty of the claims. Therefore, the Courts have so far avoided having to make a definitive decision on whether consideration of selection criteria is a distinct test for novelty under Australian law.

Specifically, in the Olanzapine case12 (discussed above) the Courts went through the process of assessing whether the claims defined a selection patent and came to the conclusion that the claims were a selection over the prior art. However, the Courts then avoided the issue of whether a novel selection was valid by stating that the claims were novel by virtue of the prior art failing to provide clear and unmistakeable directions.

What this means for Patent Applicants

Given the discussion above, there is ambiguity as to whether Markush claims are novel if they overlap with a general prior art disclosure (e.g. a prior art Markush claim). It appears that the Australian Patent Office is generally willing to accept (allow) such claims. However, it is not clear that these claims will necessarily be found valid in the Courts.

Our suggested approach for patent applications in the face of a general prior art disclosure would be as follows:

Step 1:

Obtain the broadest claim possible by amending the claim to exclude any molecules exemplified by the prior art, and then argue in favour of novelty on the basis of: (i) a lack of clear and unmistakable directions, (ii) a lack of an enabling disclosure, and/or (iii) that the claim defines a selection.

The specific approach and arguments will depend on the specific objections raised by the Australian Patent Office and the disclosures of that prior art. However, as discussed above, provided the arguments and/or amendments are reasonable, the Australian Patent Office will generally favourably reconsider the application.

Step 2:

Strengthen your fall back positions (i.e. dependent claims are very important). Given that there is uncertainty whether such an approach would result in a novel claim before a Court, the dependent claims in your application/patent become even more valuable and it is worth putting as much effort into considering the fall back positions of these dependent claims as it is in considering the scope of the main independent claim.

While your broadest claim may circumvent the explicit disclosures of the prior art, there may be a question as to whether this claim still encompasses embodiments which are enabled by the prior art disclosure (despite not being explicitly disclosed). Your dependent claims should narrow the scope of the invention to exclude these additional embodiments.

This may entail a review of the examples of the prior art document to determine what molecules could readily be made by the synthetic approaches discussed in that document. It may also involve considering which molecules or class of molecules are the most active and covering these directly.

Step 3:

As with a standard approach to drafting, further dependent claims should narrow the breadth of the invention ideally to cover the preferred embodiments.

1  Eli Lilly & Co Ltd and Another v Apotex Pty Ltd [2013] FCA 214

2  Imperial Chemicals Industries Pty Ltd v Commissioner of Patents [2004] FCA 1658 at 68

3  Nicaro Holdings Pty Ltd v Martin Engineering Co 16 IPR 545 at page 549.

4  Section 2.4.12.2.1 of the Australian Patent Manual of Practice & Procedure

5  Nicaro Holdings Pty Ltd v Martin Engineering Co 16 IPR 545 at page 549.

6  I.G. Farbenindustrie A.G.'s Patents (1930) 47 RPC 289

7  Apotex Pty Ltd v Sanofi-Aventis [2008] FCA 1194 at 66

8  Eli Lilly & Co Ltd and Another v Apotex Pty Ltd [2013] FCA 214

9  Apotex Pty Ltd v Sanofi-Aventis [2008] FCA 1194 at 66

10  Eli Lilly & Co Ltd and Another v Apotex Pty Ltd [2013] FCA 214

11  Apotex Pty Ltd v Sanofi-Aventis [2009] FCAFC 134

12  Eli Lilly & Co Ltd and Another v Apotex Pty Ltd [2013] FCA 214





DISCLAIMER: Because of the generality of this update, the information provided herein may not be applicable in all situations and should not be acted upon without specific legal advice based on particular situations.

© FPA Patent Attorneys | Attorney Advertising
